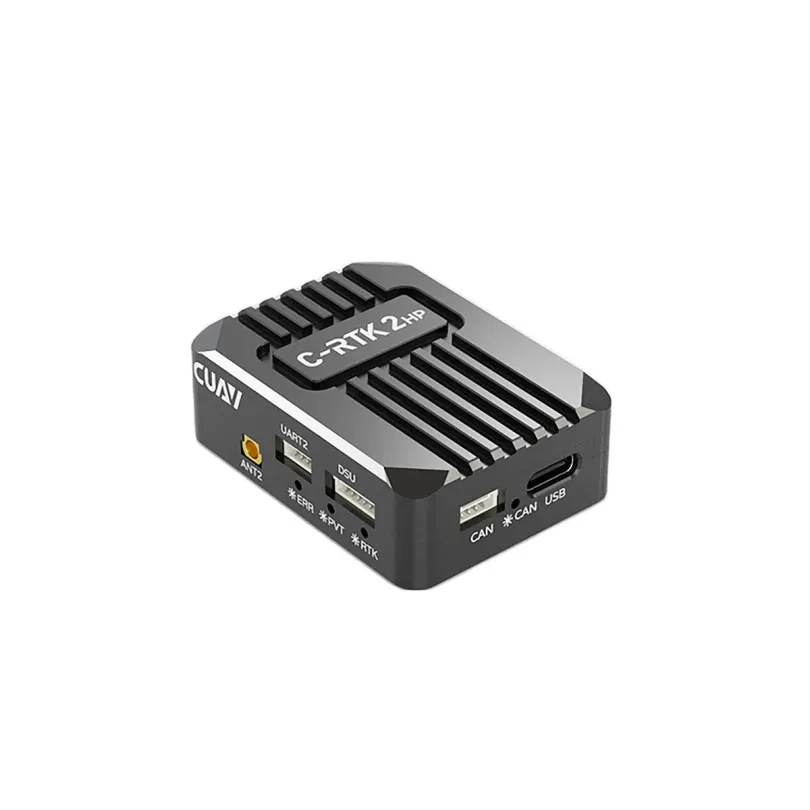

CUAV C-RTK 2HP Dual Antenna Centimeter-Level Positioning And Heading Module

CUAV C-RTK 2HP is a full constellation multi-frequency high-precision positioning and heading module. Using a new generation of high-performance GNSS SoC chip, a single chip completes the baseband and RTK solver functions. The RTK processing capacity is increased by more than 80%, and the positioning service of 50+ satellites in RTK state and the recapture time within 1s are obtained.

Effectively handle the continuity and reliability of positioning and orientation output in complex environments. The single module supports the heading function and supports the inertial navigation function. Integrated STM32F4 processor, supports DroneCAN protocol for flight control communication, built-in RM3100 industrial-grade electronic compass and IMU sensor, open source code can freely develop custom functions.

The beauty of the CUAV 2HP is that you can attach two RTK antennas to the C-RTK 2HP instead of using two RTK modules and it does the work of both RTK modules for you and can find the direction of the drone.For example, a C-RTK 2HP can do the work of twoC-RTK 9Psrover modules.

Feature

·All-Constellation Multi-frequency Receiver

·RM3100 Industrial Grade Compass

·Dual Antenna For Yaw

·Centimeter Level Positioning

All-constellation Multi-frequency High-Precision Positioning

Built-in all-constellation multi-frequency satellite receiver, support GPS, Beidou, Glonass, Galieo four satellite systems, and support for satellite systems at the same time receive, positioning accuracy plane 0.8 cm+1PPM/ elevation: 1.5 cm+1PPM

·GPS

·Beidou

·Glonass

·Galieo

Fast Positioning Without Waiting

Through the all-constellation multi-frequency GNSS signal and the advanced RTK algorithm, the convergence can be completed within 18s and the centimeter level positioning can be realized

Single Module Dual Antenna for Yaw

The C-RTK 2HP supports one module, dual antenna to realize UAV estimate yaw, replacing the magnetic compass to achieve a more stable flight and adapt to complex environments at a lower cost

Built-in Industrial Grade RM3100 Compass

The C-RTK 2HP has an industrial-grade RM3100 compass that can be installed away from interference and can be used as a reliable redundant backup source
